Grass Toppers & Flail Toppers

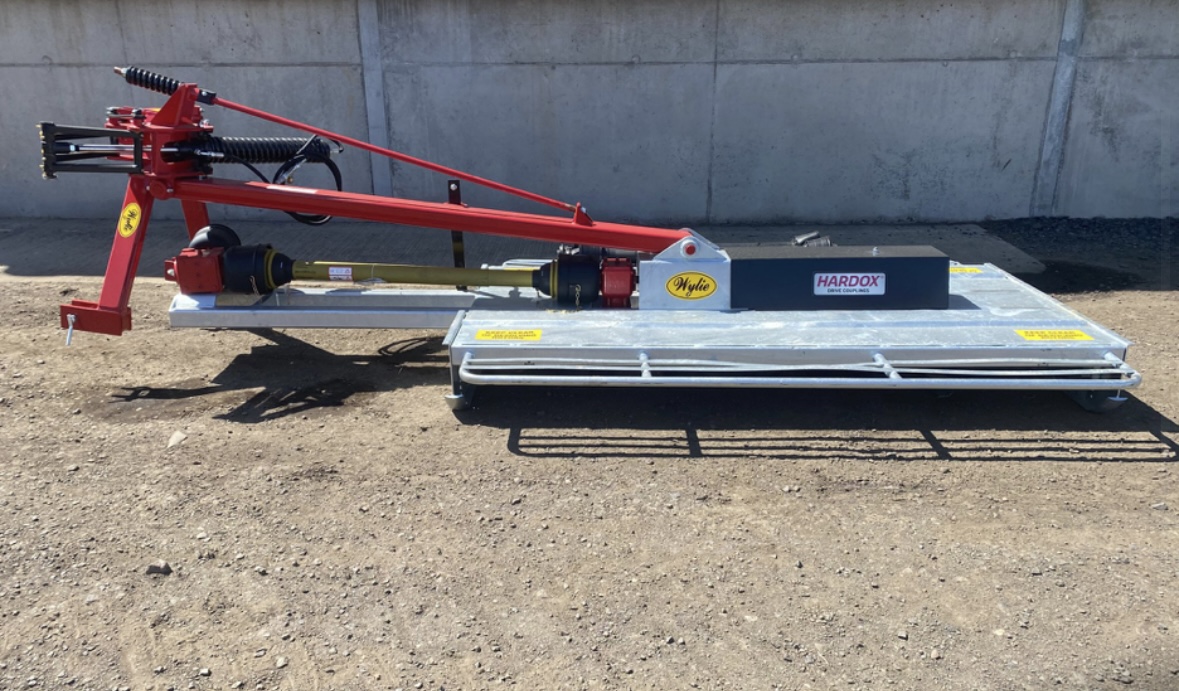

8ft Side mounted

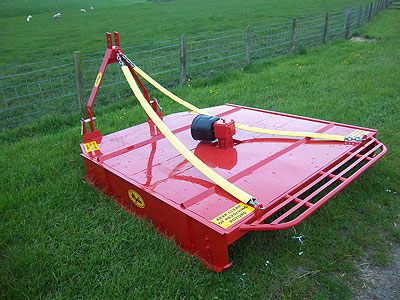

The standard 6ft semi - offset comes complete with a single rotor and two cutting blades driven through a shear bolted driveshaft and overrun clutch

The 8 ft trailed and 8 ft mounted grass toppers swing into working mode hydraulically to the offset position and can be repositioned behind the tractor in transportation mode. Each are shaft driven through oil quality gearboxes to turn dynamically balanced rotors each with steel tempered blades.

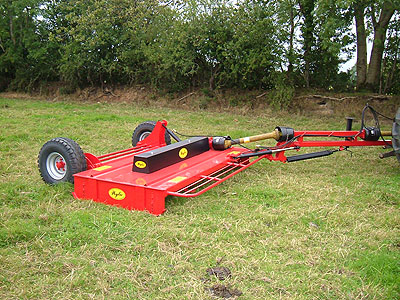

The 8ft trailed features a hydraulic ram complete with pilot operated hose burst check valve to bring the machine into working mode. It also acts as a safety feature during transportation when in road use. A further hydraulic ram adjusts the cutting height from 1 -10 inches.

Power to rotors is transmitted by heavy duty driveshafts through oil bath gears

• Hydraulic ram c/w pilot operated check valve to bring machine into working mode.
• Adjustable hydraulic ram for raising and lowering cutting height 1 inch - 10 inches
• All cutter rotors are fitted with swinging tempered steel blades
• Rotors are dynamically balanced - ensuring maximum working life
• Suitable for small horsepower tractors
• Removeable jack
• Spring - suspended drawbar
• Robust twin trail arms
• 8’ Trailed and 8’ Mounted Toppers available with optional extra Manx Rotors and   bolt-on dome cup for extra gear box protection.

Weight 700kg

Silver Medal winner at four major British shows 1997
