Rakes and Tedders

• Fully enclosed grease filled rotor gearboxes with only 2 grease points
• Oil immersed tine arm pivots and cam track
• Track following steering wheels
• 80 ° turning angle on headstock and wide angle PTO-shaft
• ‘Terra-link Quattro’ contour following wheel system
• Radial pin overload clutch protection (separate for each rotor)
• Super-C Quality tines
• Radial tine arms, cranked
• Mechanical rotor height adjustment from the top of each rotor
• Warning panels & road lights
• Hydraulic working width adjustment
• Duracoat powder painted
• Working Width – 6.3m to 7.2m

Optional Extras: Elec.-/hydr. single-sided lift activation with pilot box, tine saver clips, Tandem axles for Quattro undercarriage.

• Maintenance free gearboxes
• Rotor gearbox crown wheels with radial bearing running in an oil bath
• Adjustable cam track
• Bi-tangential tine arms
• Super-C Quality tines
• Detachable tine arms and folding safety guards
• Radial pin overload clutch protection (separate for each rotor)
• Track following steering wheels
• 80° Turning angle on headstock and wide angle PTO-shaft
• ‘Terra-link Quattro’ contour following wheel system
• Mechanical rotor height adjustment, operated from the front of each rotor
• Hydraulic working width adjustment
• Warning panels and road lights
• Duracoat powder painted
• Working Width – 7.4m to 8m

Optional Extras: Tandem axles for Quattro undercarriage, Comfort Kit, Elec.-/hydr. single-sided lift activation with pilot box, tine saver clips.

• Maintenance free gearboxes
• Rotor gearbox crown wheels with radial bearing running in an oil bath
• Adjustable cam track
• Bi-tangential tine arms
• Super-C Quality tines
• Detachable tine arms and folding safety guards
• Radial pin overload clutch protection (separate for each rotor)
• Track following steering wheels
• 80° Turning angle on headstock and wide angle PTO-shaft
• ‘Terra-link Quattro’ contour following wheel system
• Mechanical rotor height adjustment, operated from the front of each rotor
• Hydraulic working width adjustment
• Warning panels and road lights
• Duracoat powder painted
• Hydro lift rear axle
• 380/5-17 tyres
• Working Width – 8m to 9m

Optional Extras: Pro Comfort Control – Electric Controls, Tandem axles for Quattro undercarriage, tine saver clips

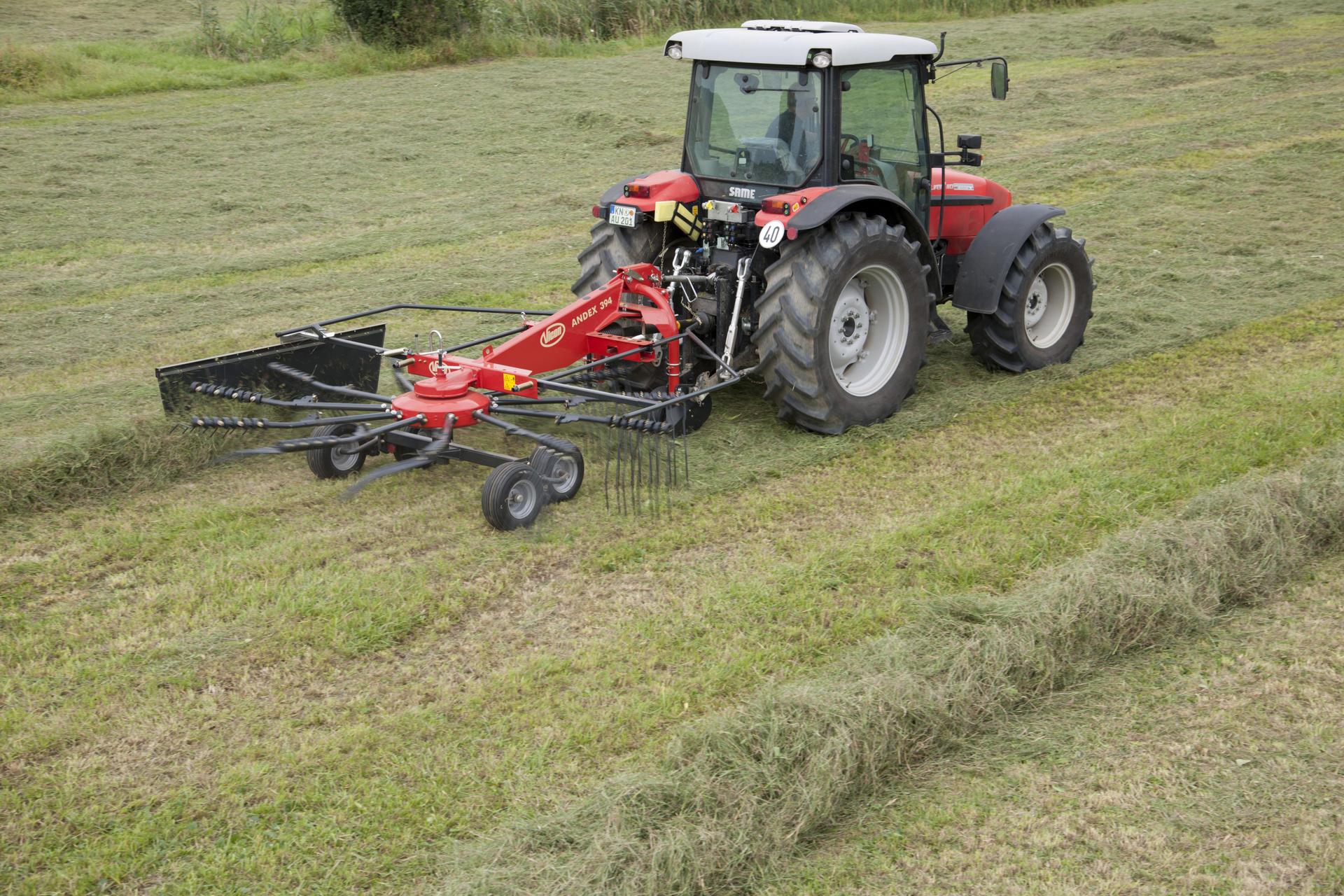

• Fully enclosed grease filled rotor gearboxes with only 2 grease points
• Oil immersed tine arm pivots and cam track
• Pivoting headstock with cat 1 & 2 pins
• Radial pin overload clutch protection
• Adjustable swath board
• Super-C Quality tines
• Radial tine arms, cranked
• Detachable tine arms and folding safety guards
• Integrated vibration damper and locking device
• Single axle

Optional Extras: Tandem axles, tine saver clips, Road lights, Crank extension for height adjustment

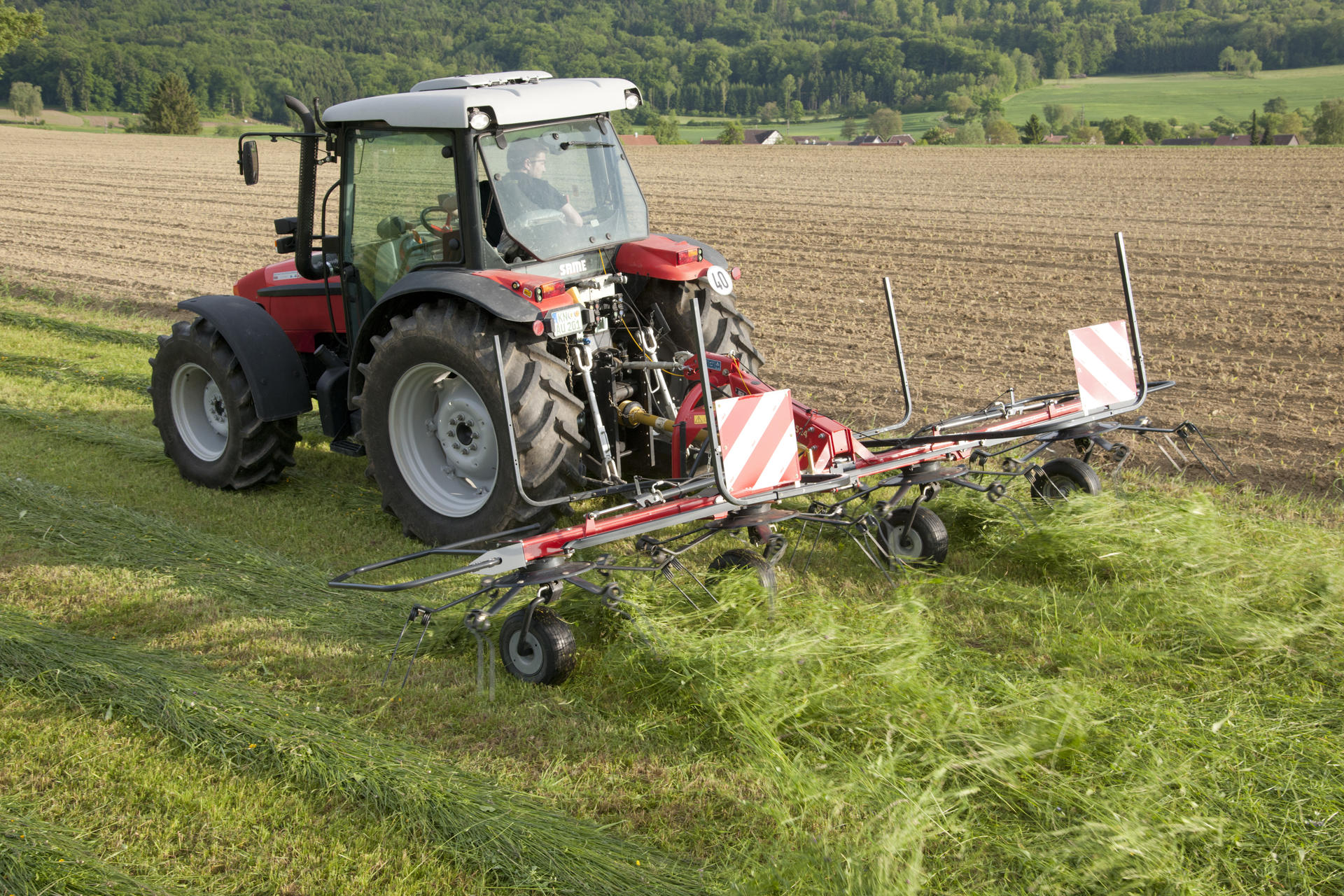

• Low maintenance unitary rotor gearboxes
• 4 Rotors with 6 tines per rotor
• ‘Optiset’ tine fastening
• Shot-blasted and powder coated 9mm diameter ‘Super-C’ Quality tines
• Heavy duty brass bushed pivots
• Double universal joint drives
• Headstock with vibration damper.
• 3 Position spread angle adjustment
• Border spreading.
• 16.0 x 6.0 Tyres c/w anti-wrapping cones

Optional Extras: Hydraulic border tedding adjustment, 2 warning panels with road lights

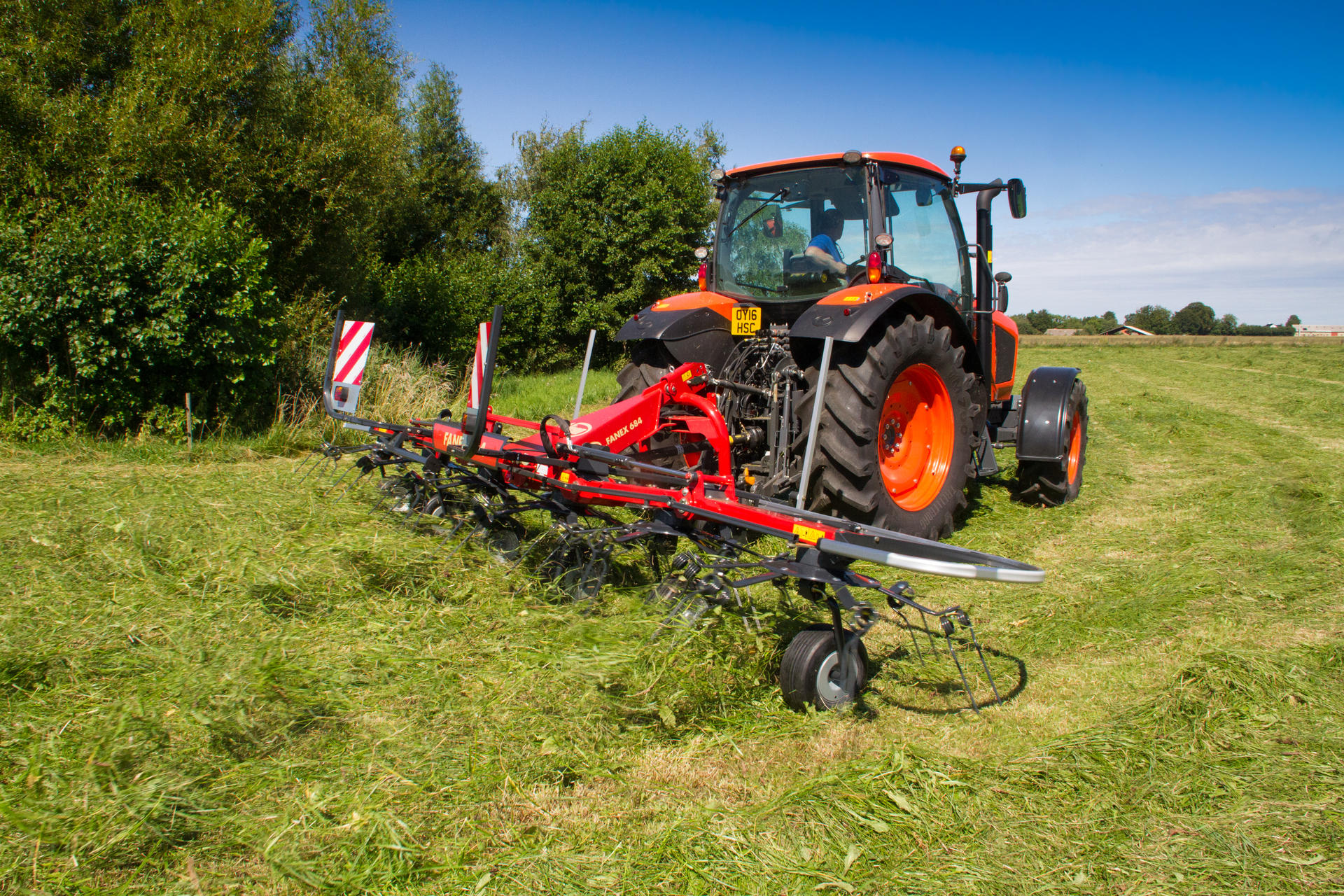

• Maintenance free oil filled gearboxes
• Maintenance free driveline with NEW Hexalink clutches and U-Joints
• Crown wheel with radial bearing running in an oil bath
• 6 Rotors with 7 tines per rotor
• ‘Optiset’ tine fastening
• Shot-blasted and powder coated 10mm diameter ‘Super-C’ Quality tines
• Heavy duty brass bushed pivots
• Double universal joint drives
• Headstock with locking vibration dampers to prevent oscillation
• 3 Position spread angle adjustment
• Central adjustment facility for border spreading.
• 16.0 x 6.5 Tyres c/w anti-wrapping cones
• Duracoat powder painted
• Double Acting Cylinder for Unfolding in all conditions and positions

Optional Extras: Hydraulic border tedding adjustment, warning panels with road lights, Spare wheel 16 including fixation kit, Anti-wrapping plates.

• 3.5m working width
• 9 tine arms, 3 double tines
• Steering headstock
• Tandem axles – 4 wheels
• Swathing curtains
• 3 point linage mounted.

• 5.2m Working Width
• 4 Rotors with 6 Tine Arms per Rotor
• Double Tines
• 3 Point Linkage Mounted
• Mechanical Headland Spreading Adjustment
• Hydraulic Folding

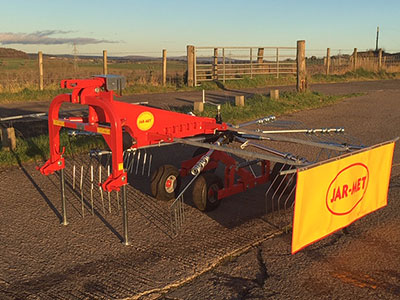

• 3m Working Width
• P.T.O Shaft with Slip Clutch
• Flotation Wheels
• Rear Swathing Gates
