Ifor Williams Horseboxes

Ifor Williams Horsebox HB403

Model Details

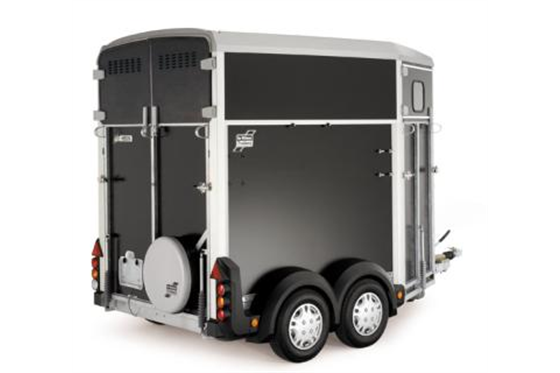

Ifor Williams HB403 Single Horsebox. As a single horsebox, the Ifor Williams HB403 horsebox provides more stall width than our double horsebox models and offers enough headroom to take one 16.2hh horse. Being a narrower trailer, the HB403 is easier to tow and produces less wind resistance when towing.

The HB403 is ideal for transporting nervous horses that require a wider stall and may prefer to travel alone.

Specification
Model dimensions can be viewed in the table below. For more detailed dimensions, please download the product brochure.

PDFHorseboxes

ModelTyresGross WeightUnladen WeightInternal LengthInternal WidthOverall LengthOverall Width
HB403 155R13C 1600kg 767kg 3.08m 1.30m 4.36m 1.73m
HB506 165R13C 2600kg 920kg 3.16m 1.67m 4.30m 2.10m
HB511 165R13C 2700kg 1000kg 3.52m 1.79m 4.65m 2.22m

Ifor Wiliams Horsebox HB506

Ifor Williams HB506 Horsebox

Model Details

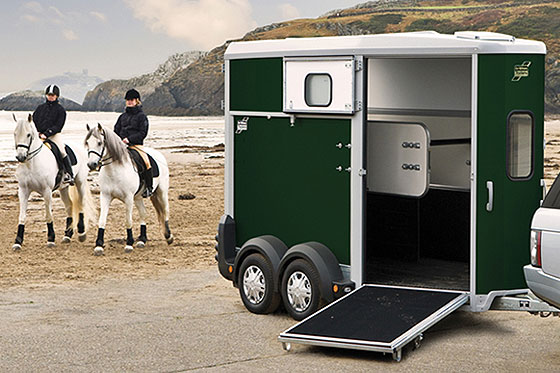

The Ifor Williams HB506 model horsebox is suitable for two horses up to 16.2hh. HB506 models feature a pair of side windows and a larger front inspection window, allowing more daylight into the trailer.
Centre partitions and breast & breeching bars are fitted as standard


Specification

Model dimensions can be viewed in the table below. For more detailed dimensions, please download the product brochure.

PDFHorseboxes

ModelTyresGross WeightUnladen WeightInternal LengthInternal WidthOverall LengthOverall Width
HB403 155R13C 1600kg 767kg 3.08m 1.30m 4.36m 1.73m
HB506 165R13C 2600kg 920kg 3.16m 1.67m 4.30m 2.10m
HB511 165R13C 2700kg 1000kg 3.52m 1.79m 4.65m 2.22m

Ifor Wiliams Horsebox HB511

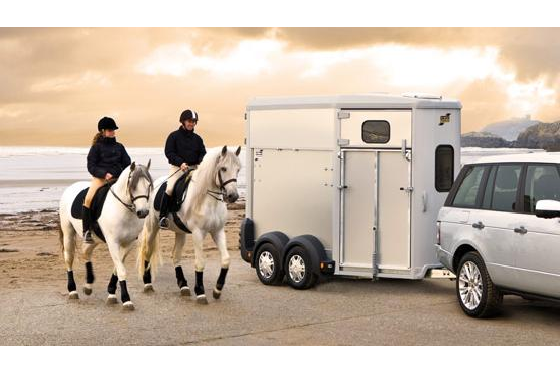

For owners with larger horses, the Ifor Williams HB511 horsebox is likely to be the natural choice. Being longer and wider than the HB506, the HB511 is suitable for carrying two horses up to 17.2hh.

The HB511 is fitted with a pair of side windows and a larger front inspection window, allowing more light into the trailer.

Specification

Details in the table below; for more information please download the brochure.

PDFHorseboxes

ModelTyresGross WeightUnladen WeightInternal LengthInternal WidthOverall LengthOverall Width
HB403 155R13C 1600kg 767kg 3.08m 1.30m 4.36m 1.73m
HB506 165R13C 2600kg 920kg 3.16m 1.67m 4.30m 2.10m
HB511 165R13C 2700kg 1000kg 3.52m 1.79m 4.65m 2.22m

Ifor Williams HBX Horsebox

Introducing the beautifully engineered HBX range. A stunning design which delivers the highest levels of comfort and safety for your horse.

Available in the familiar 403, 506 and 511 size format the design comes with a streamlined aluminium body and a host of intelligent new features. These include the ability to open the rear of the horsebox as both a ramp and a side-hinged door, and the option to open the front windows fully, or just a little.

The sides, floor and ramps of the HBX range are manufactured entirely from aluminium planking. This lightweight structure provides clean modern lines, making the horsebox easy to tow without compromising on strength. The sides and ramps are all anodised to give a smooth and sophisticated finish which is easy to maintain.

The HBX range features three models - one suitable for single horse transport and two different sized double horseboxes.

The HBX-403 is a single horsebox suitable for the transport of a horse of up to 16.2hh. As a single horsebox the HBX-403 offers more stall width than either of the two double horseboxes.

The HBX506/511 double horseboxes are ideal for transporting two horses up to 16.2hh/17.2hh respectively. They are available with the option of either a front ramp or a built-in tack locker.

Options include padded breast and breeching bars, side padding and the choice of fitting a side awning to your trailer via the awning rail (fitted as standard).

For full details please download the brochure.

PDFHBX Horseboxes

Model Tyres Gross Weight Unladen Weight Internal Length Internal Width Overall Length Overall Width
HBX403 165R13C 1600kg 720kg 3.19m 1.30m 4.30m 1.77m
HBX506 165R13C 2600kg 865kg 3.26m 1.67m 4.30m 2.14m
HBX511 165R13C 2700kg 950kg 3.63m 1.79m 4.67m 2.27m
