Ifor Williams Box Van Trailers
Ifor Williams Boxvan Trailer - BV4
Our BV4 series is the small trailer with a big heart. It's available in single or twin axle versions, the single axle version being suitable for towing behind many larger family saloons.
Identical in every aspect of quality and build to the larger models in the range, this 8ft x 4ft trailer boasts 5ft headroom (which will clear most garage doors) and a carrying capacity of 4.62m³. The tapered, aerodynamic front section reduces drag, providing better fuel economy for the towing vehicle.
The single axle version offers a maximum gross weight of 1400kg, whilst the twin axle version offers 2700kg. Available with a choice of van doors or combination ramp doors, the BV4 series offers a surprisingly high specification for a small trailer.
White coated side panels allow you ample scope to advertise. Whether you're a go-karting enthusiast, running a mobile disco or transporting promotional material, you'll find the BV4 trailer a convenient and cost-effective solution.
Construction
Fully galvanized chassis and framework, resin-coated timber platform, aluminium coated composite sides, translucent GRP roof.
Standard Equipment
- Front access door
- Receiver tracks for cargo straps and poles (4 off)
- Thermo-plastic mudguards
- EC approved auto-reverse braking system
- 165R13C radial ply tyres
- Beam axles with heavy duty leaf springs
- Interior light
- Free registration with The Equipment Register (TER)
- Spare wheel and carrier
Specifications
| Model |
Max. Gross Weight |
Internal Length |
Internal Width |
Headroom |
Internal Volume |
|
| BV84 S/Axle |
5' H/R |
1400kg | 2400mm (95") |
1170mm (46") |
1530mm (60") |
4.62m³ |
| BV84 | 5' H/R |
2700kg | 2400mm (95") |
1170mm (46") |
1530mm (60") |
4.62m³ |
Ifor Williams Boxvan Trailer - BV5
A regular on motorways all over the UK and Europe, the BV5 epitomises the flexibility of our box van range. Purchasers from antique dealers to mobile mechanics, small businesses to utility companies, have all found that this trailer can carry heavy loads or bulk items with ease.
The BV5 series is offered with three headroom options: 5ft (which will clear most garage doors), 6ft or 7ft (not available on BV85). There are length options of 8ft, 10ft or 12ft. Carrying capacities range from 5.95m³ to 12.12m³.
All sizes come with twin axles giving a maximum gross weight of 2700kg. The BV85 is also offered with a single axle and a reduced maximum gross weight of 1400kg.
Tough, smart and easy to clean, the white coated side panels provide the perfect 'blank canvas' ready to be sign-wrtten and ideal for graphics and logos.
Construction
Fully galvanized chassis and framework, resin-coated timber platform, GRP sides, translucent GRP roof.
Standard EquipmentFront access door
- Receiver tracks for cargo straps and poles (4 off)
- Thermo-plastic mudguards
- EC approved auto-reverse braking system
- 165R13C radial ply tyres
- Beam axles with heavy duty leaf springs
- Interior light
- Free registration with The Equipment Register (TER)
- Spare wheel and carrier
Specifications
| Model | Max. Gross Weight | Internal Length | Internal Width | Headroom | Internal Volume | |
|---|---|---|---|---|---|---|
| BV85 | 5' H/R | 2700kg | 2400mm (94 ½") |
1470mm (58") | 1530mm (60") |
5.95m³ |
| BV85 S/Axle | 5' H/R | 1400kg | 2400mm (94 ½") |
1470mm (58") | 1530mm (60") |
5.95m³ |
| BV85 | 6' H/R | 2700kg | 2400mm (94 ½") |
1470mm (58") | 1830mm (72") |
5.95m³ |
| BV85 S/Axle | 6' H/R | 1400kg | 2400mm (94 ½") |
1470mm (58") | 1830mm (72") |
5.95m³ |
| BV85 S/Axle | 7' H/R | 1400kg | 2400mm (94 ½") |
1470mm (58") | 2140mm (72") |
5.95m³ |
| BV85 S/Axle | 7' H/R | 1400kg | 2400mm (94 ½") |
1470mm (58") | 2140mm (72") |
5.95m³ |
| BV105 | 5' H/R | 2700kg | 3000mm (118") | 1470mm (58") | 1530mm (60") |
7.29m³ |
| BV105 | 6' H/R | 2700kg | 3000mm (118") | 1470mm (58") | 1830mm (72") |
8.72m³ |
| BV105 | 7' H/R | 2700kg | 3000mm (118") | 1470mm (58") | 2140mm (84") |
10.20m³ |
| BV125 | 6' H/R | 2700kg | 3640mm (143") | 1475mm (58") | 1830mm (72") |
10.36m³ |
| BV125 | 7' H/R | 2700kg | 3640mm (143") | 1470mm (58") | 2140mm (84") |
12.12m³ |
Boxvan - BV6
For people who have bulky and/or heavy loads to move, the BV6 range is the ideal choice. With parallel side walls and no wheel arch intrusions, the space inside these trailers is cavernous. The series offers a carrying capacity of up to 14.38m³.
The BV6 is available in lengths of 10ft or 12ft, and 2 headroom options: 6ft and 7ft. All models have a maximum gross weight of 3500kg. The trailer offers a tapered front and a choice of roller shutter door, van door or ramp doors. GRP-coated side panels allow the purchaser ample scope to advertise.
Construction
Fully galvanized chassis and framework, resin-coated timber platform, GRP sides, translucent GRP roof.
Standard EquipmentFront access door
- Front access door
- Receiver tracks for cargo straps and poles (4 off)
- Thermo-plastic mudguards
- EC approved auto-reverse braking system
- 155/70R12C radial ply tyres
- Beam axles with heavy duty leaf springs
- Interior light
- Free registration with The Equipment Register (TER)
- Spare wheel and carrier
- Propstands
Specifications
| Model | Max. Gross Weight | Internal Length | Internal Width | Headroom | Internal Volume |
|
|---|---|---|---|---|---|---|
| BV106 | 6' H/R |
3500kg | 3000mm (118") |
1730mm (68") |
1830mm (72") |
10.37m³ |
| BV106 | 7' H/R |
3500kg | 3000mm (118") |
1730mm (68") |
2140mm (84") |
12.12m³ |
| BV126 | 6' H/R |
3500kg | 3600mm (142") |
1730mm (68") |
1830mm (72") |
12.30m³ |
| BV126 | 7' H/R |
3500kg | 3600mm (142") |
1730mm (68") |
2140mm (84") |
14.38m³ |

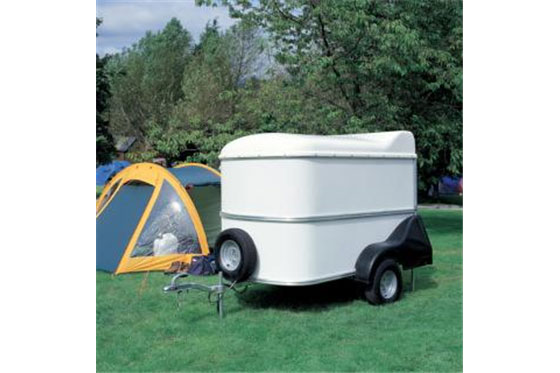

Ifor Williams Boxvan Trailer - BV64e Unbraked
Small enough to tow conveniently behind your car, providing 2.3m3 of space, this box van is ideal for leisure, domestic or small business users.
Ideal for family holidays, weekend trips, the sports enthusiasts with too much gear for the boot/roof rack or simply the small business with goods to move. You’ll find the BV64e an ideal way to keep all your belongings safe, dry and away from prying eyes.
Both models feature a streamlined body and mudwings with the rear prop stands integrated into the wings. The adhesive bonded aluminium body structure gives exceptional strength whilst also saving weight, giving you more payload.
A convenient roof rack option on the van door version allows oversize objects* to be safely carried, anything from pipes and planks to canoes or surfboards. Rubber interior matting is also available to help grip your valuable load along with tie down points for the floor (these are sold loose so they can be positioned as desired to suit your load).
The strong, low maintenance rubber torsion suspension system is fitted with 145/80B10 tyres giving a maximum gross weight† of up to 500kg.
| Dimensions in metres |
A |
B | C | D |
E |
F |
G |
Gross Weight |
| With van doors |
2.95 | 1.59 | 0.41 | 1.53 | 1.85 | 1.18 | 1.08 | 500kg |
| With van doors & optional roof rack |
2.95 | 1.59 | 0.41 | 1.60 | 1.85 | 1.18 | 1.08 | 500kg |
| With roller shutter door | 2.95 | 1.59 | 0.41 | 1.85 | 1.85 | 1.18 | 1.28 | 500kg |
For full details, download the brochure
