Ifor Williams Q Range Trailers
The Q range trailer is a compact, convenient but robust trailer designed with both the agricultural and domestic user in mind. On road they can be pulled by the family car whilst off road they can be pulled by a quad bike or gator.
Braked Q Trailer
Model Details

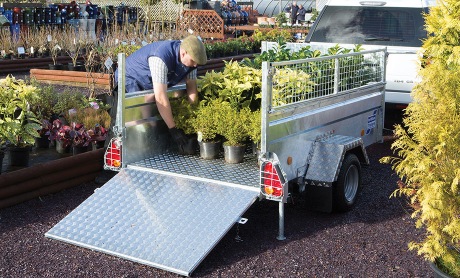

The Braked Q Trailer is a compact, convenient but robust trailer designed with domestic, agricultural and commercial users in mind. These trailers can be pulled by the majority of cars with a maximum gross weight of 1000kg. The trailer comes in three different lengths giving the customer a choice of trailer volume. They are all made with a galvanised chassis, treated timber and leaf spring suspension. The durability of the trailer is second to none.
The treadplate floor ensures the trailer is easily cleaned.
Options for this trailer include a useful roof and rack with numerous tie-down points, internal partition, stock ramp door, hinged mesh or hinged solid sides.
Specification
| Model | Tyres | Gross Weight | Unladen Weight | Internal Length | Internal Width | Overall Length | Overall Width |
|---|---|---|---|---|---|---|---|
| Q6b | 195/55R10C | 1000kg | 300kg | 1.95m | 1.22m | 3.02m | 1.71m |
| Q7b | 195/55R10C | 1000kg | 315kg | 2.19m | 1.22m | 3.27m | 1.71m |
| Q8b | 195/55R10C | 1000kg | 390kg | 2.51m | 1.45m | 3.62m | 1.95m |
Unbraked Q Trailer
Model Details

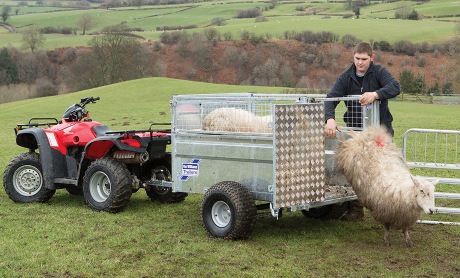

The Q Range trailer is a compact, convenient but robust trailer designed with both the agricultural and domestic user in mind. On road they can be pulled by the family car whilst off road they can be pulled by a quad bike or gator.
They have a GVW of 750kg and can cope with different uses for the domestic, commercial or farmyard appliances.
The trailer is built using Ifor Williams leaf spring suspension along with all over galvanised chassis and body.
Q5e off-road has two tyre options available: either flotation tyres or deeper tread depth knobbly tyres. The latter are excellent in muddy conditions or over difficult terrain more easily reached by off-road vehicles.
Options on these trailers include internal partition, stock ramp door, hinged mesh or hinged solid sides.
Specification
| Model | Tyres | Gross Weight | Unladen Weight | Internal Length | Internal Width | Overall Length | Overall Width |
|---|---|---|---|---|---|---|---|
| Q5e Off Road | 20.5 x 8-10 | 750kg | 185kg | 1.51m | 1.03m | 2.6m | 1.52m |
| Q5e Off Road | 22 x 11-8* | 350kg | 185kg | 1.51m | 1.03m | 2.6m | 1.62m |
| Q5e Road | 20.5 x 8-10 | 750kg | 200kg | 1.51m | 1.02m | 2.6m | 1.52m |
| Q6e Off Road | 20.5 x 8-10 | 750kg | 235kg | 1.95m | 1.22m | 3.02m | 1.71m |
| Q6e Road | 20.5 x 8-10 | 750kg | 250kg | 1.95m | 1.22m | 3.02m | 1.71m |
| Q7e Off Road | 20.5 x 8-10 | 750kg | 250kg | 2.19m | 1.22m | 3.27m | 1.71m |
| Q7e Road | 20.5 x 8-10 | 750kg | 265kg | 2.19m | 1.22m | 3.27m | 1.71m |
