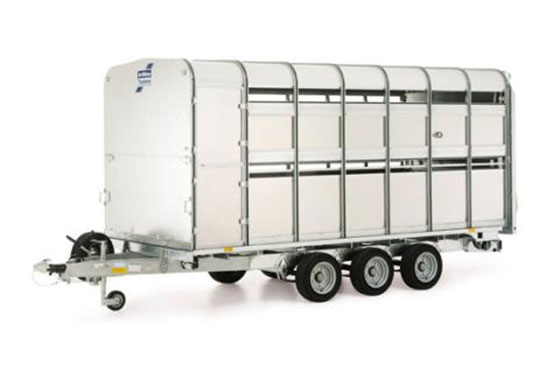

Ifor Williams Livestock Trailers - DP120
The DP120 range combines a substantial maximum volume and gross weight (3500kg) with the option of a removable container. When the container is removed, the DP120 can be used as a conventional flatbed trailer.
Body lengths of 10’, 12’ and 14’ are available, all with standard headroom of 6’. A triaxle is an option on the 12’ model and standard on the 14’ version.
All sizes are available with either the standard ramp or with the EasyLoadTM ramp and folding deck system (shown in more detail later in the brochure).
The trailer also includes aluminium ramp gates, pressure treated timber planking and slip-resistant aluminum treadplate flooring, receiver brackets for the optional cross division, side ventilation flaps and a split front access door.
Other standard features include:
- Spare wheel and carrier
- 50mm ball coupling
- Aluminium ramp gates
- Side vents and flaps
- Split front access door
- Rear ramp assistor
- Headboard sockets for use with optional headboard in flatbed configuration
- Heavy duty Jockey wheel
Other options include dropside fittings and kit.
Specification
| Model | Tyres | Gross Weight | Unladen Weight | Internal Length | Internal Width | Overall Length | Overall Width |
|---|---|---|---|---|---|---|---|
| DP120 10’x6’ H/R | 195/60R12C | 3500kg | 1060kg | 3.00m | 1.80m | 4.65m | 2.03m |
| DP120 12’x6’ H/R | 195/60R12C | 3500kg | 1150kg | 3.60m | 1.80m | 5.16m | 2.03m |
| DP120T 12’x6’ H/R (Tri Axle) | 195/60R12C | 3500kg | 1270kg | 3.60m | 1.80m | 5.16m | 2.03m |
| DP120T 14’x6’ H/R (Tri Axle) | 195/60R12C | 3500kg | 1355kg | 4.37m | 1.80m | 5.76m | 2.03m |
Ifor Williams Livestock Trailers - P6/P8
These two models, the lightest in our braked Livestock range, are designed for those who need a light yet robust means of transporting small types of livestock. Easy to tow, reverse and manoeuvre, the trailers will meet the needs of the most serious of farming professionals.
They are ideal for those who regularly attend agricultural shows with their prize animals.
The distinctive steel roof channels give a strong and rigid frame to which the aluminium side panels and heat-reflecting roof are secured. With single axle beam, leaf sprung suspension and galvanized steel chassis, these trailers differ only in size to their larger cousins.
With a maximum gross weight of 1400kg, they can be towed by most large family cars. They provide a payload of 1010kg for the 6’ long version (4’ headroom) and 960kg for the 8’ long version (4’ headroom). Both models offer 4’ and 5’ of headroom with a width of 4’. Other standard features include:
- Front Inspection door
- Spare wheel and carrier
- 50mm locking ball coupling
- Larger side vents and flaps
- Aluminium ramp side gates
- Loading ramp
Specifications
| Model | Tyres | Gross Weight | Unladen Weight | Internal Length | Internal Width | Overall Length | Overall Width |
|---|---|---|---|---|---|---|---|
| P6 4’ H/R (Single Axle) | 165R13C | 1400kg | 380kg | 1.80m | 1.23m | 2.95m | 1.73m |
| P6 5’ H/R (Single Axle) | 165R13C | 1400kg | 400kg | 1.80m | 1.23m | 2.95m | 1.73m |
| P8 4’ H/R (Single Axle) | 165R13C | 1400kg | 427kg | 2.42m | 1.23m | 3.51m | 1.73m |
| P8 5’ H/R (Single Axle) | 165R13C | 1400kg | 452kg | 2.40m | 1.23m | 3.51m | 1.73m |
Ifor Williams Livestock Trailers - P6e/P7e Unbraked
Our P6e and P7e livestock range offers small unbraked trailers with outstanding flexibility both on and off road. Light enough to be towed by a quad bike, they can be used for moving sheep or calves around the farm on short off-road journeys. With the canopy removed, the trailers become general utility trailers for carrying feed, fertiliser and other goods.
The livestock versions include aluminium ramp gates, ventilation louvres in the front of the canopy and fixing
points for the optional cross division.
Other standard features of the P6e and P7e include:
- Spare wheel and carrier
- 50mm ball coupling
- Front prop stand
- Rope hooks
- Impact resistant plastic mudguards
- Aluminium / steel loading ramps
The optional welded mesh side panels are invaluable when carrying large bulky objects such as wool, branches and firewood. They provide a payload of 1010kg for the 6’ long version (4’ headroom) and 960kg for the 8’ long version (4’ headroom). The P7e is slightly longer with a floor space of 1.21m x 2.21m and is ideal for transporting larger quad bikes around the farm.
The axle, drawbar and body panels of the P6e and P7e are constructed from hot-dipped galvanized steel. The floor is 18mm thick high density plywood with a tough, water-proof resin coating on both sides. A factory fitted option of 2mm aluminium treadplate overlay is available. The loading ramp is panelled in 2mm thick slip resistant aluminium treadplate.
A single axle (rubber torsion type) is fitted with a choice of either 145R10 (P6e only, 500kg gross weight), 145R13 (500 & 750kg gross weight) or 20.5 x 8-10 (750kg gross weight) floatation tyres.
Other variants of the P6e and P7e are available. Our complete range of P6e and P7e trailers can be found in our unbraked brochure, available from your P6e with ramp and 20.5 x 8-10 tyres (750kg) local distributor.
Specification
| Model | Tyres | Gross Weight | Unladen Weight | Internal Length | Internal Width | Overall Length | Overall Width |
|---|---|---|---|---|---|---|---|
| P6e | 145/70R13 | 750kg | 172kg | 1.98m | 1.21m | 2.95m | 1.72m |
| P7e | 20.5x8-10 | 750kg | 193kg | 2.21m | 1.21m | 3.18m | 1.72m |
| P7e | 145/70R13 | 500kg | 177kg | 2.21m | 1.21m | 3.18m | 1.72m |
| P7e | 145/70R13 | 750kg | 193kg | 2.21m | 1.21m | 3.18m | 1.72m |
| P6e | 20.5x8x10 | 750kg | 172kg | 1.98m | 1.21m | 2.95m | 1.72m |
| P7e | 20.5x8x10 | 750kg | 193kg | 2.21m | 1.21m | 3.18m | 1.72m |

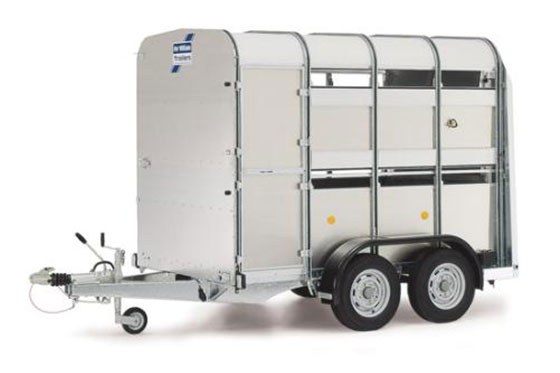

Ifor Williams Livestock Trailers - TA5
The TA5 4’ headroom models are slightly wider than the P6 and P8 at 5’, and feature wider side vents with flaps giving increased ventilation. With the low headroom and increased floor area, the wind resistance is minimised when towing, a bonus when travelling long distances. The twin axles provide a maximum gross weight of 2700kg.
These trailers have the Ifor Williams axle beam and leaf sprung suspension, galvanised steel chassis, aluminium side panels and heat reflecting roof. The rear ramp is covered with grip face aluminium planking and is fitted with a ramp assistor.
The TA5 livestock trailer includes aluminium ramp gates, durable pressure treated timber planking covered with aluminium treadplate flooring, front access door and receiver brackets for the optional cross division.
Available in 8’, 10’, and 12’ body lengths, the TA5 4’ headroom models also include the following standard features:
- Front Inspection door
- Spare wheel and carrier
- 50mm locking ball coupling
- Larger side vents and flaps
- Aluminium ramp side gates
- Rear ramp assistor
These models are designed for those who require an alternative to the larger TA510 or DP120. The TA5 range with 6’ or 7’ headroom is a substantial but slightly narrower trailer, ideal for navigating rural tracks and lanes.
The TA5 6’ and 7’ are available in 8’, 10’, and 12’ body lengths. The 8’ and 10’ versions have a maximum gross weight of 2700kg, while the 12’ heavy duty version offers 3500kg maximum gross weight.
All sizes are available with either the standard ramp, combination ramp doors or with the EasyLoadTM ramp and folding deck system. The award winning EasyLoadTM ramp and folding deck system have been designed to enable
the handler to load two decks of sheep without having to manhandle large weights. The system is shown in more detail later in the brochure.
Fitted with twin axle beam and leaf sprung suspension, galvanized steel chassis, aluminium side panels and heat reflecting roof panels. The rear ramp is covered with grip face aluminium planking and is spring-assisted for ease of operation. The flooring is durable pressure treated timber planking covered with slip resistant aluminium treadplate. Other standard features include:
- Spare wheel and carrier
- 50mm locking ball coupling
- Aluminium ramp gates
- Side vents and flaps
- Split front access door
- Rear ramp assistor
| Model | Tyres | Gross Weight | Unladen Weight | Internal Length | Internal Width | Overall Length | Overall Width |
|---|---|---|---|---|---|---|---|
| TA5 8’x4’ H/R | 165R13C | 2700kg | 610kg | 2.32m | 1.53m | 3.92m | 2.10m |
| TA5 10’x4’ H/R | 165R13C | 2700kg | 710kg | 3.12m | 1.53m | 3.92m | 2.10m |
| TA5 12’x4’ H/R | 165R13C | 2700kg | 790kg | 3.72m | 1.53m | 5.20m | 2.10m |
| TA5 8’x6’ H/R | 165R13C | 2700kg | 725kg | 2.32m | 1.53m | 3.92m | 2.10m |
| TA5 10’x6’ H/R | 175/75R16C | 2700kg | 875kg | 3.12m | 1.53m | 4.60m | 2.10m |
| TA5 10’x7’ H/R | 175/75R16C | 2700kg | 910kg | 3.12m | 1.53m | 4.60m | 2.10m |
| TA5HD 12’x6’ H/R | 175/75R16C | 3500kg | 1005kg | 3.72m | 1.53m | 5.20m | 2.10m |
| TA5HD 12’x6’ H/R | 6.50R16C | 3500kg | 1005kg | 3.72m | 1.53m | 5.20m | 2.10m |
| TA5HD 12’x7’ H/R | 175/75R16C | 3500kg | 1030kg | 3.72m | 1.53m | 5.20m | 2.10m |
| TA5HD 12’x7’ H/R | 6.50R16C | 3500kg | 1030kg | 3.72m | 1.53m | 5.20m | 2.10m |

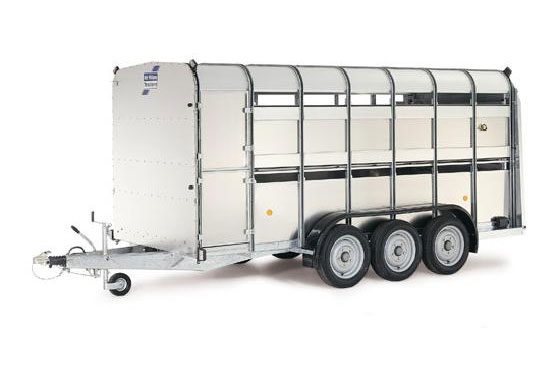

Livestock Trailers - TA510
The TA510 range offers substantial high specification trailers, designed for those who require the maximum volume and gross weight available.
Body lengths of 10’, 12’ and 14’ are available, with height options of 6’ and 7’. The 7’ versions, with optional centre partition fitted, allow two 16.2hh horses to be transported*. All trailers have a maximum gross weight of 3500kg; payload varies between 2010kg and 2550kg depending on size and specification. All sizes are available with either the standard ramp, combination ramp doors or with the EasyLoadTM ramp and folding deck system.
TA510 trailers are fitted with a twin axle beam (tri- axle option on 14’ model), leaf sprung suspension, galvanised steel chassis, aluminium side panels, heat reflecting roof, and grip-faced aluminium planking covered rear ramp.
These trailers also feature aluminium ramp gates, pressure treated timber planking with slip resistant aluminium tread-plate flooring, receiver brackets for the optional cross divisions, side ventilation flaps and front access door. Other standard features include:
- Spare wheel and carrier
- 50mm locking ball coupling
- Aluminium ramp gates
- Side vents and flaps
- Split front access door
- Rear ramp assister
- Heavy duty Jockey wheel
*Subject always to The Welfare of Animals (Transport) Order 1997.
Specification
| Model | Tyres | Gross Weight | Unladen Weight | Internal Length | Internal Width | Overall Length | Overall Width |
|---|---|---|---|---|---|---|---|
| TA510 10’x6’ H/R | 175/75R16C | 3500kg | 970kg | 3.08m | 1.75m | 4.60m | 2.30m |
| TA510 10’x6’ H/R | 6.50R16C | 3500kg | 970kg | 3.08m | 1.75m | 4.60m | 2.30m |
| TA510 10’x7’ H/R | 175/75R16C | 3500kg | 995kg | 3.08m | 1.75m | 4.60m | 2.30m |
| TA510 10’x7’ H/R | 6.50R16C | 3500kg | 995kg | 3.08m | 1.75m | 4.60m | 2.30m |
| TA510 12’x6’ H/R | 175/75R16C | 3500kg | 1105kg | 3.74m | 1.75m | 5.17m | 2.30m |
| TA510 12’x6’ H/R | 6.50R16C | 3500kg | 1105kg | 3.74m | 1.75m | 5.17m | 2.30m |
| TA510 12’x7’ H/R | 175/75R16C | 3500kg | 1130kg | 3.74m | 1.75m | 5.17m | 2.30m |
| TA510 12’x7’ H/R | 6.50R16C | 3500kg | 1130kg | 3.74m | 1.75m | 5.17m | 2.30m |
| TA510 14’x6’ H/R | 6.50R16C | 3500kg | 1155kg | 4.32m | 1.75m | 5.83m | 2.30m |
| TA510T 14’x6’ H/R (Tri Axle) | 175/75R16C | 3500kg | 1265kg | 4.32m | 1.75m | 5.83m | 2.30m |
| TA510 14’x7’ H/R | 6.50R16C | 3500kg | 1185kg | 4.32m | 1.75m | 5.83m | 2.30m |
| TA510T 14’x7’ H/R (Tri Axle) | 175/75R16C | 3500kg | 1295kg | 4.32m | 1.75m | 5.83m | 2.30m |
For full details, view the product brochure.
